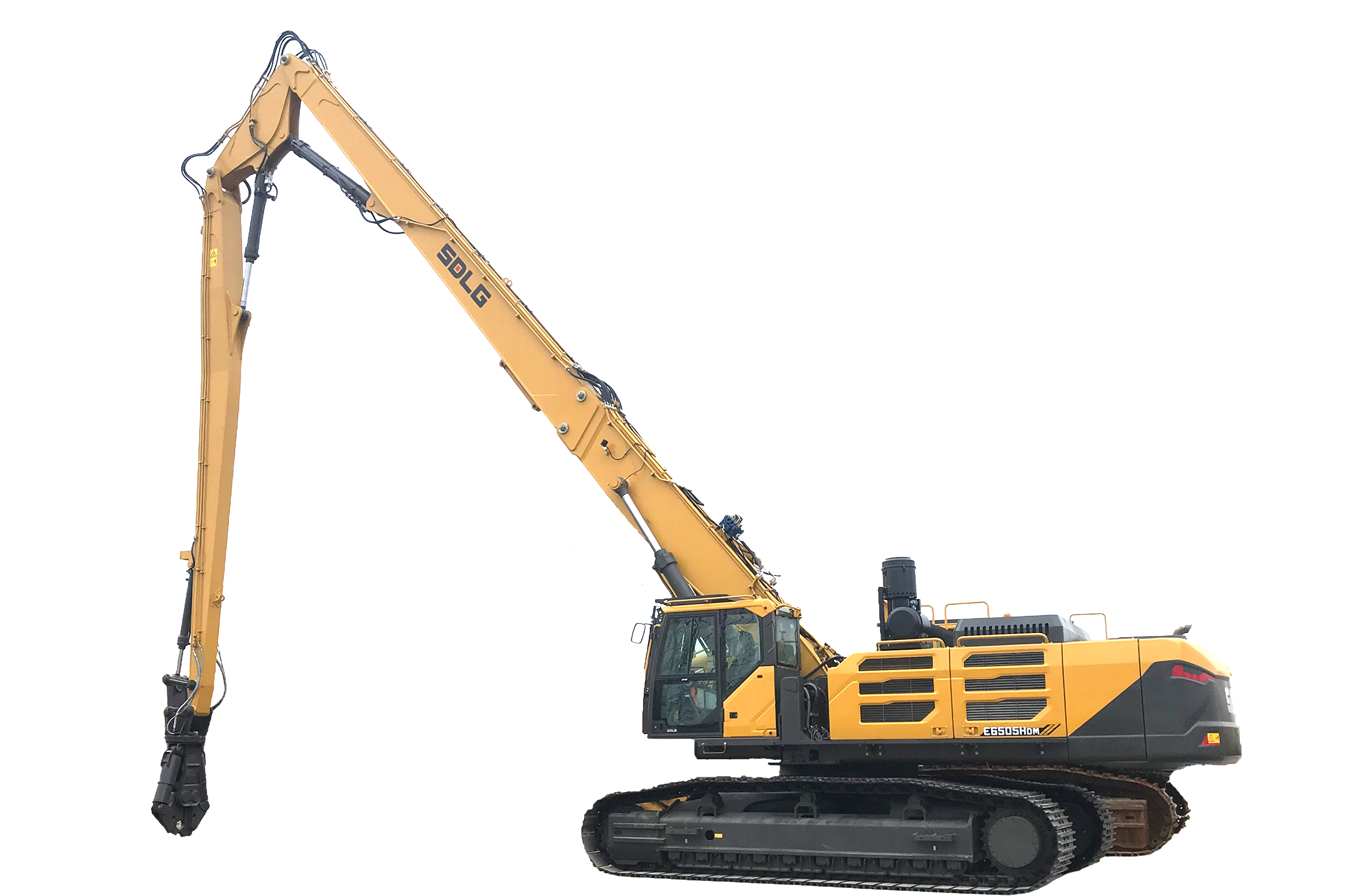

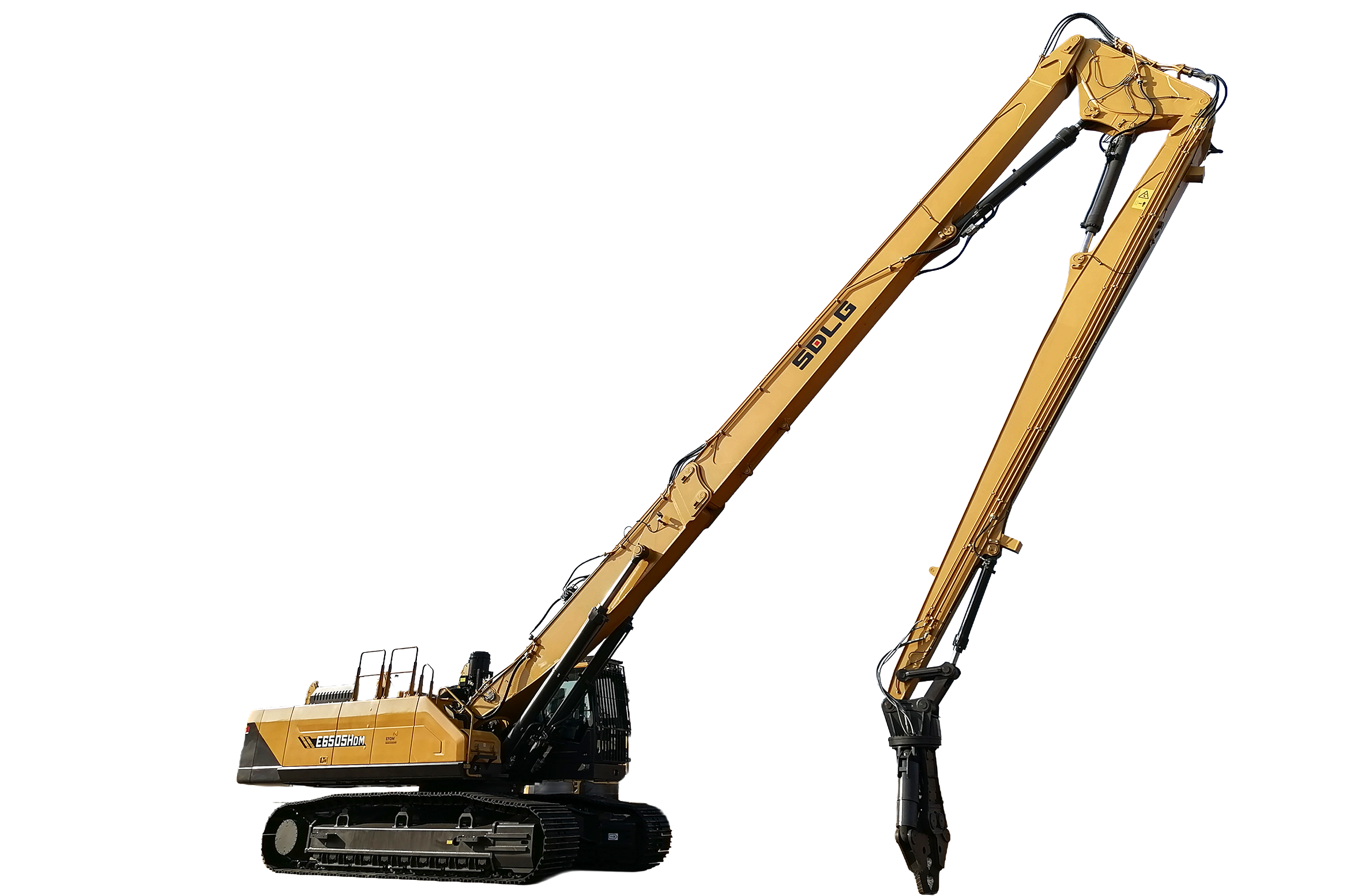

Excavator E6505HDM

Operating Weight (kg)

63000

Rated Power (kW)

300
Field of application:

Utilities

Heavy infrastructure

Quarries & Aggregates

Features

Powerful & Efficient Performance: Equipped with the robust imported ISUZU 6WG1 engine (300 kW) and a precisely tuned dual-pump hydraulic system, it delivers strong digging force and stable, responsive operation while maintaining excellent fuel efficiency.

Enhanced Durability for Demolition: Features a specially reinforced chassis, wide 800mm crawler tracks, and high-strength hydraulic pipelines with secure fittings. This design ensures superior stability, reduced pressure loss, and outstanding resistance to the vibrations and impacts of demolition work.

Superior Stability & Heat Management: The standard large counterweight, with options for additional weights, provides optimal balance during heavy lifting. An enlarged hydraulic oil radiator effectively prevents overheating, ensuring consistent performance and long component life.

Safe & Operator-Focused Design: The elevated cab offers an excellent field of vision, complemented by an optional heavy-duty protection net. Key functions are integrated into the pilot control handles for intuitive operation. Standard cylinder explosion-proof valves significantly enhance jobsite safety.

Proven Quality Heritage: Backed by SDLG's award-winning commitment to excellence, recognized globally with the EFQM award, ensuring a machine built to the highest standards of quality and reliability.

Technical Parameter
Operating Weight (kg) 63000
Engine Model 6WG1
Rated Power (kW) 300
Length×Width×Height (mm) 15757×3645×3540
Emission Standard GB 20891-2014
Swing Speed (r/min) 8.5
Traveling Speed (km/h) 3.1/5.3
Fuel Tank Capacity (L) 760
